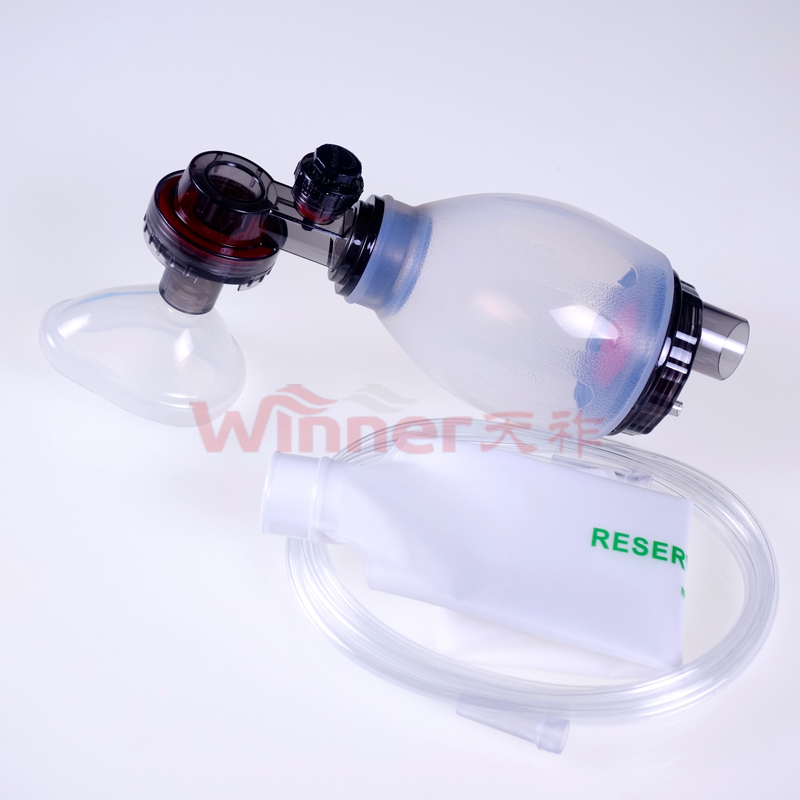

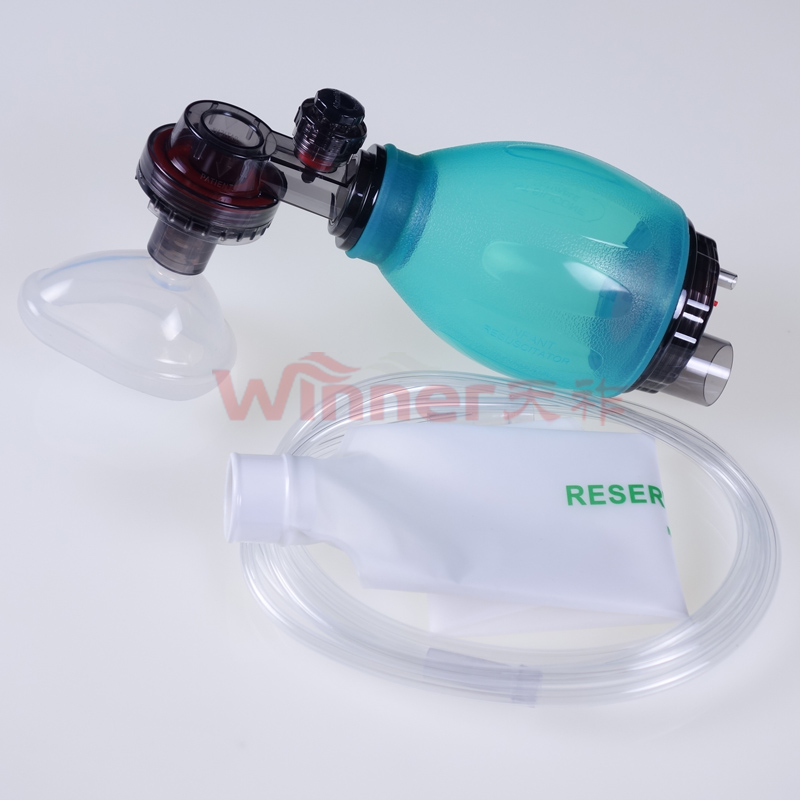

Silicone Manual Resuscitator for infant-TW8131
Silicone Manual Resuscitator for infant-TW8131
Infant/Neonate | Pediatric | Adult | |
Body weight | ≤10 kg | 10kg～33kg | ≥33kg |
Stroke volume | 150 ml | 350 ml | 800 ml |
Resuscitator volume | 340ml/250ml | 550ml/680ml | 1630ml |
Dimensions(Lenght×Diameter) | 225×85mm | 262×105mm | 325×132mm |
Resuscitator weight | 165 g | 207 g | 300 g |
Pressure limiting valve | 40 cmH2O | 40 cmH2O | 60 cmH2O |
Dead space(patient valve) | 7 ml | 7ml | 7 ml |
Inspiratory resistance | ＜5 cmH2O (at 50 L/min) | ||
Expiratory resistance | ＜5 cmH2O (at 50 L/min) | ||
Bag reservoir volume | 1600 ml/600ml | 1600 ml | 2000/2500 ml |
Patient connector | ISO Ø22/15 mm | ||
Recommended Operating temperature: -18 ℃～ +50 ℃ | |||
Storage | -40 ℃～ +60 ℃ | ||
